HISTORY OF COMPUTER DATA STORAGE A STAGE BY STAGE PICTORIAL PRESENTATION

From the beginning of mankind, man tried to find a way to store information for the following generations. When people nowadays hear the word storage or computer storage they normally think aboutCD Rom, USB key or DVD. Things like the floppy disk or the punch card are nearly forgotten. In fact, the history of information storage goes back to pre-historic times where mankind used red and yellow ochre, hematite, manganese oxide and charcoal to paint information about their life on rock walls, caves and ceilings.

  Nowadays we are used to having hundreds of gigabytes of storage capacity in our computers. Even tiny MP3 players and other handheld devices usually have several gigabytes of storage. This was pure science fiction only a few decades ago. For example, the first hard disk drive to have gigabyte capacity was as big as a refrigerator, and that was in 1980. Not so long ago!

  Pingdom stores a lot of monitoring data every single day, and considering how much we take today’s storage capacity for granted, it’s interesting to look back and get things in perspective.

 Here is a look back at some interesting storage devices from the early computer era.

The Selectron tube
The Selectron tube had a capacity of 256 to 4096 bits (32 to 512 bytes). The 4096-bit Selectron was 10 inches long and 3 inches wide. Originally developed in 1946, the memory storage device proved expensive and suffered from production problems, so it never became a success.

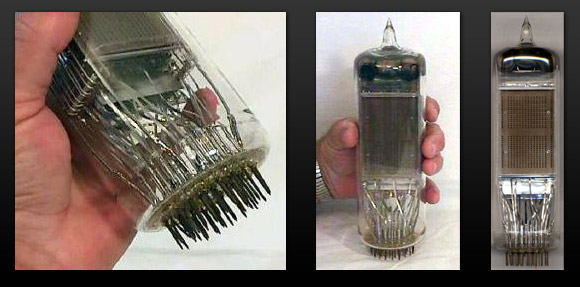

                                                Above: The 1024-bit Selectron


Punch cards
 Early computers often used punch cards for input both of programs and data. Punch cards were in common use until the mid-1970s. It should be noted that the use of punch cards predates computers. They were used as early as 1725 in the textile industry (for controlling mechanized textile looms).

                      Above: Card from a Fortran program: Z(1) = Y + W(1)

     Above left: Punch card reader. Above right: Punch card writer. Punched tape

Same as with punch cards, punched tape was originally pioneered by the textile industry for use with mechanized looms. For computers, punch tape could be used for data input but also as a medium to output data. Each row on the tape represented one character.

                           Above: 8-level punch tape (8 holes per row)
Magnetic drum memory

 Invented all the way back in 1932 (in Austria), it was widely used in the 1950s and 60s as the main working memory of computers. In the mid-1950s, magnetic drum memory had a capacity of around 10 kB.

Above left: The magnetic Drum Memory of the UNIVAC computer. Above right: A 16-inch-long drum from the IBM 650 computer. It had 40 tracks, 10 kB of storage space, and spun at 12,500 revolutions per minute.

The hard disk drive
 The first hard disk drive was the IBM Model 350 Disk File that came with the IBM 305 RAMAC computer in 1956. It had 50 24-inch discs with a total storage capacity of 5 million characters (just under 5 MB).

                   Above: IBM Model 350, the first-ever hard disk drive.

The first hard drive to have more than 1 GB in capacity was the IBM 3380 in 1980 (it could store 2.52 GB). It was the size of a refrigerator, weighed 550 pounds (250 kg), and the price when it was introduced ranged from $81,000 to $142,400.

                                           Above left: A 250 MB hard disk drive from 1979.

                      Above right: The IBM 3380 from 1980, the first gigabyte-capacity hard disk drive

The Laserdisc
We mention it here mainly because it was the precursor to the CD-ROM and other optical storage solutions. It was mainly used for movies. The first commercially available laserdisc system was available on the market late in 1978 (then called Laser Videodisc and the more funkily branded DiscoVision) and were 11.81 inches (30 cm) in diameter. The discs could have up to 60 minutes of audio/video on each side. The first laserdiscs had entirely analog content. The basic technology behind laserdiscs was invented all the way back in 1958.

                     Above left: A Laserdisc next to a regular DVD. Above right: Another Laserdisc
The floppy disc

 The diskette, or floppy disk (named so because they were flexible), was invented by IBM and in common use from the mid-1970s to the late 1990s. The first floppy disks were 8 inches, and later in came 5.25 and 3.5-inch formats. The first floppy disk, introduced in 1971, had a capacity of 79.7 kB, and was read-only. A read-write version came a year later.

                  Above left: An 8-inch floppy and floppy drive next to a regular 3.5-inch floppy disk.

                             Above right:The convenience of easily removable storage media.

Magnetic tape
Magnetic tape was first used for data storage in 1951. The tape device was called UNISERVO and was the main I/O device on the UNIVAC I computer. The effective transfer rate for the UNISERVO was about 7,200 characters per second. The tapes were metal and 1200 feet long (365 meters) and therefore very heavy.

                                  Above left: The row of tape drives for the UNIVAC I computer.

                         Above right: The IBM 3410 Magnetic Tape Subsystem, introduced in 1971.

                                             Above left: The standard compact cassette.

                                               Above right: The Commodore

The Modern Era

Everyone Knows about the modern era of data storage system
that why just go through a pictorial presentation.
